Rugged and tough. The EX 5’ x 8’ cabin is designed for comfortable sleeping and lots of cargo space. Can be equipped for short weekend trips or extended expeditions through any terrain. The cabin fits an upgraded 6” queen size mattress for great comfort. 3 Cabinets for storage. New electrical panel comes standard. Insulated entry doors with locks and deadbolts. The exterior has a large 34”w 30”d lockable cargo space accessible from the back. One additional 12” deep storage compartment on the driver side for quick access items. 12” deep pantry compartment on the passenger side, the door folds down into a flat prep area lined with food grade stainless steel. Shelves store your food, utensils and dishes. There are 3 new frame options to choose from. Timbren suspension comes standard but the world's best Cruisemaster suspension CRS2 is now available. Electric brakes and 32 inch all terrain tires on 17” wheels come standard. The tongue is designed to accept most hitch couplers out there, it comes standard with a 2” ball coupler. All our trailers now come with an ARK Extreme Off-road swing up jack with dual wheels. This jack allows a height adjustment to ensure it will work with stock or lifted vehicles. Large heavy duty aluminum front box, 60 inches wide with one lockable door per side. Large heavy duty slide out drawer. This is where the kitchen and bathroom options get installed if selected. Large aluminum front loading tongue box. The strut assisted door opens upward for easy loading. A new low profile full length aluminum roof rack, now comes with 3 oversized t-slot bars. 12v standard electrical package includes a deep cycle battery, circuit breaker, front switch box (4 switches, voltmeter, usb and 12v outlet), 1 bank 10 amp battery charger, the cabin has interior lights and a second switch box with voltmeter, usb and 12v outlet.

FRAME OPTIONS

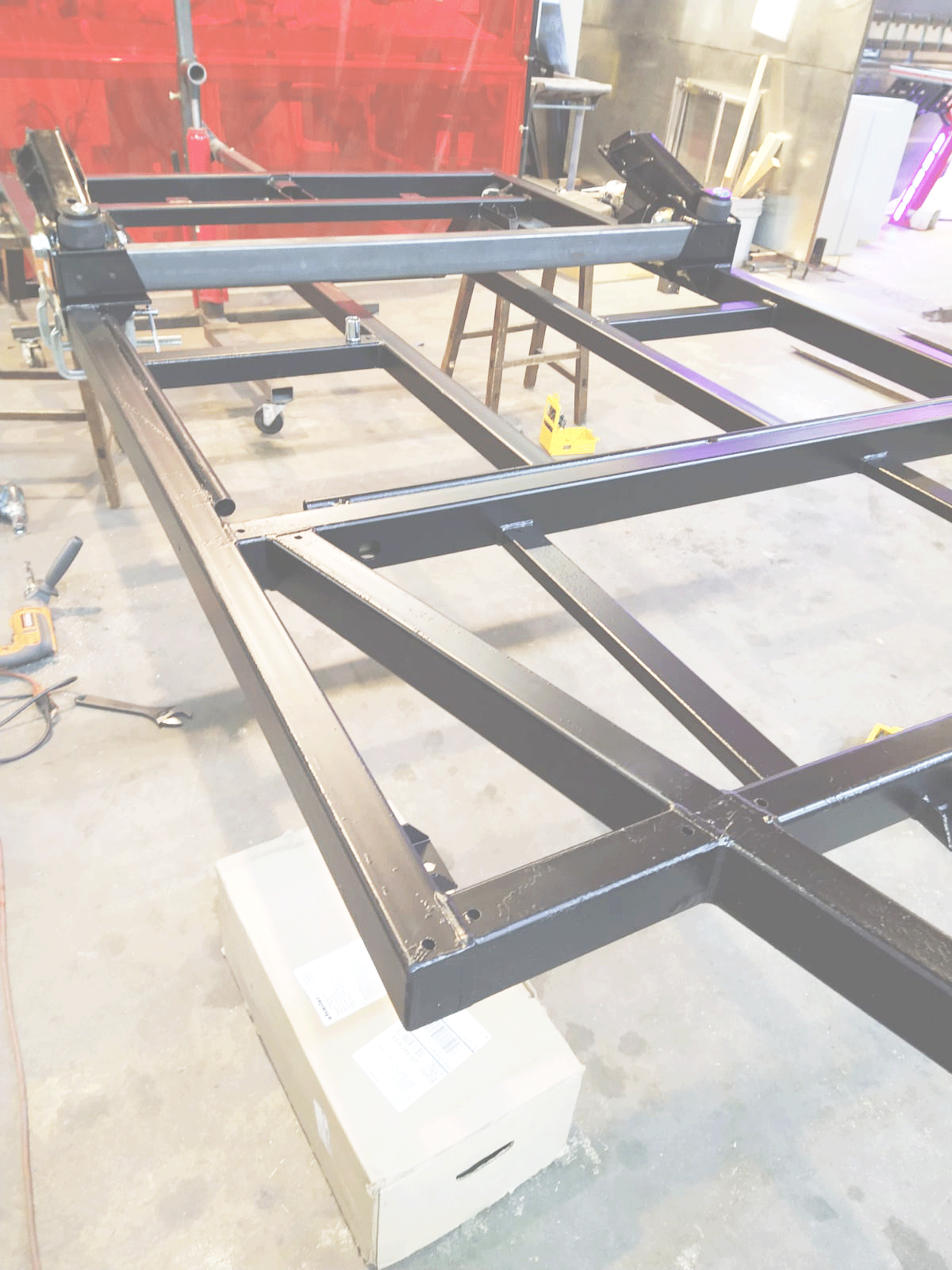

1. STANDARD FRAME Timbren axle-less heavy duty independent suspension.2" removable hitch coupler. Black powder coated finishArk XO front jack32" tires, 17" wheels & 6x5.5 bolt pattern Electric brakesRemovable rear jacks.

2. FRAME UPGRADE 1 Timbren axle-less heavy duty independent suspension.Hot dipped galvanized frame & powder coated blackHitchmaster DO35 articulating coupler with parking brakeArk XO front jack32" tires, 17" wheels & 6x5.5 bolt patternElectric brakesRemovable rear jacks.

3. FRAME UPGRADE 2 Cruisemaster CRS2 coil/ 2x shock suspension.Hot dipped galvanized frame & powder coated blackHitchmaster DO35 articulating coupler with parking brakeRecovery pointsArk XO front jack32" tires, 17" upgraded wheels & multiple bolt patterns to choose fromElectric brakesRemovable rear jacks

CABIN OPTIONS

1. WOOD CABIN Built out of top quality pre-finished Baltic birch. This is a solid, strong and stable panel that will last a really long time. Our assembly process utilizes different adhesives. This allows for a very strong structural core while allowing a lot of cabin flex, minimizing the chances of possible failures due to off road abuse. Everything gets cladded with powder coated aluminumIncluded

2. ALUMINUM CABIN This cabin offers better insulation, lighter weight and is more resistant to humidity. This is not your typical composite construction. We build a reinforced laser cut aluminum structure to withstand all the off-roading abuse. The interior still uses a wooden cabinet face and doors to keep the warm feeling.

3. ARMOR PACKAGE Rubberised panels around the trailer and fenders to protect the most vulnerable areas from rock chips and other possible damage$800FALSE

EQUIPMENT OPTIONS

1. KITCHEN OPTION Double drawer setup mounted on the front cargo box. Mounted on the passenger side for safe use on the side of the road. Heavy duty, lock in/out slides that carries a fridge/cooler (not included) on the first extension. Plumbed sink, stove and cutlery drawer on the second extension. Requires water and propane packages.

2. BATHROOM AND SHOWER In demand hot water propane heater/shower, portable toilet, bathroom privacy pop up tent. Requires water and propane packages.

3. WATER PACKAGE 21 gal. plastic water tank covered with a galvanized steel plate for protection, pump, fill up, drain and plumbing.

4. WATER UPGRADE Add a second independent 21 gal. plastic tank for a total of 42 gal capacity (only available with frame upgrade

5. PROPANE PACKAGE 11 lbs. propane tank and aluminum holder, protected by stone deflectors. They get mounted in front of the cargo box next to the tongue box.

6. PROPANE UPGRADE Adds a second 11 lbs. propane tank and bracket.

ELECTRICAL AND LIGHTNING OPTIONS

1. LITHIUM UPGRADE A Battleborn LiFePo4 battery - 100 Ah

2. LITHIUM UPGRADE B Battleborn LiFePo4 batteries - 200 Ah.100 w

3. SOLAR 100 watt folding panel, controller, 25 ft coord and quick connect.

4. SOLAR 200 watt 200 watt folding panel, controller, 25 ft coord and quick connect.

5. EXTERIOR LIGHT PACKAGE 3 dimmable perimeter lights, 1 pantry light, 2 rear storage lights and 2 side under mount lights to illuminate the ground.

6. INVERTER 1000 pckg1000 watt sine inverter with remote. 3AC outlets (front box, cabin & pantry) Battery upgrade recommended. 110 outlets on bathroom cabinet, cabin and pantry.

7. INVERTER 2000 pckg2000 watt sine inverter with remote. 3 AC outlets (front box, cabin & pantry) Battery upgrade recommended. 110 outlets at bathroom cabinet, cabin and pantry

8. REDARC MANAGER 30 + SCREEN Complete battery management system that controls AC-DC charging, DC-DC charging solar. Monitors consumption and loads from the screen or through your phone and via bluetooth

9. REDARC REDVISION All the advantages of the Manager 30 plus features like water tank level, interior and exterior temperature.. All the accesories and lights are controlled through the screen or your phone via bluetooth
